The cylinders and sliders are not new, but are trade-ins or parts that were used for development and have been serviced. Although they are not new, there is no problem with operation and the warranty period is one year, the same as for new products.
All parts are new except for the motion parts.
The number of units that can be produced changes daily.
If the cylinder is not in stock, it will be displayed as "in preparation.
Please specify the color from red, white, black and white when ordering.
If you would like 6-axis, etc., please purchase the upgrade kit separately.
Reasonably priced while maintaining the concept of realistic driving feel
Steering controller, steering wheel, pedals, bucket seats, monitor, and computer are not included. Main unit only. (Includes a PC and a controller.
(If you would like a set with PC, controller, etc., please contact us individually from here. We will provide a quotation.)
This product requires assembly by the customer.
-
2-axis (horizontal seat cylinder specification)Delivery time: 1-1.5 months
Two cylinders are horizontally connected to the seat to realize forward/backward movement in front/rear G and rotational movement of the seat during rear sliding.
Newly adopted pedal plate
FANATEC, G29, T300, T500, TGT are supported.
8-axis controller mounted
An 8-axis controller is included with all motion-equipped grades.
There is no need to replace the controller when adding cylinders .
Adjustment function
The method of adjusting by loosening bolts has not changed, but the method of adjusting the steering position and FANATEC shifter position has been improved.
Square pipe structure designed exclusively for

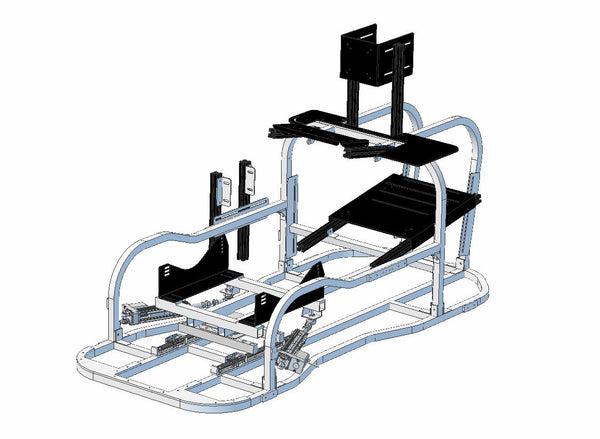

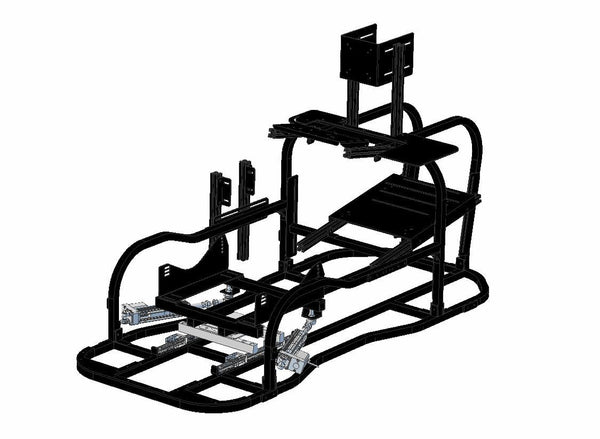

Product image
ACSIM-MINI2 Installation image of controller, etc.
A square pipe frame designed exclusively for MINI2 is used to enhance the design.
A reinforcement frame is available as an option. It can strengthen the rigidity of the shifter installation and the chassis itself.
Reinforcing frame installed image.
Seat
A full bucket seat can be installed.
The seat cylinder vertical type seat horizontal mounting plate can be mounted with the same seat, but the shape is different.
In order to achieve a realistic driving feel, we have realized "rear slide" and motion during acceleration and deceleration on two axes, which we are most particular about.
- Two cylinders slide forward. This expresses deceleration G during braking. Braking control is possible while feeling the force during braking.
- During cornering, the rear tire skidding is represented by rotating the seat. Enables gas pedal control while feeling the grip of the current tires.
- Steering controller, steering wheel, pedals, bucket seats, monitor, and computer are not included.
- The shifter is designed to be installed by FANATEC. If you wish to use another manufacturer's shifter, we ask that you devise your own.
- This product is available in two types: KIT, which requires assembly by the customer, and finished product.
- A hexagonal wrench is required for assembly.
Assembly Instructions - Our staff will visit you to deliver the finished product. Kits are delivered by courier service.
Please note that the main unit is a large box and weighs 30 kg.
Please note that you will need help when the product arrives.
Correspondence Table
| Title Name | Corresponding Ver. | Front and Rear G | Tire lock | Slide |
|---|---|---|---|---|
| Gran Turismo 6 *1 | 6.0.0.0 or later | 0 | 0 | 0 |
| Gran Turismo Sport | 7.2.2.3 or later | 0 | 0 | 0 |
| Gran Turismo 7 | 8.1.3.0 or later | 0 | 0 | 0 |
| Automobilista | 7.0.0.9 or later | 0 | 0 | Automobilista2 |
| Automobilista2 | 8.0.5.0 or later | 0 | 0 | GTR2 |
| GTR2 | GTR2 Steam | |||
| GTR2 Steam | Steam | GTR2 | rFactor | |
| rFactor | rFactor | rFactor | rFactor | |
| rFactor Steam | 6.2.2.18 or later | 0 | rFactor Steam 6.2.2.18 or later | rFactor2 |
| rFactor2 | rFactor2 | rFactor2 | rFactor2 Steam | |
| rFactor2 Steam | 6.2.2.18 or later | 0 | rFactor2 Steam 6.2.2.18 or later | 0 |
| Race07 | 0 | 0 | Race07 | |
| RaceRoom Racing Experience | Since 6.2.2.29 | 0 | 0 | 0 |
| ProjectCars,ProjectCARS2, ProjectCARS3, Pagani Edition |
7.2.1.8 and later CARS3➡8.0.8.0 and later Pagani➡8.0.13.0 and later |
0 | 0 | 0 |
| iRacing SDK1.10 | 7.0.2.3 or later | 0 | 0 | |
| ASSETO CORSA | 6.2.2.7 or later | 0 | 0 | 0 |
| Assetto Corsa Competizione | Since 7.6.1.3 | 0 | 0 | 0 |
| Assetto Corsa Ultimate Edition Japanese (DMM) | 8.0.4.0 or later | 0 | 0 | 0 |
| F12010,2011,2012 F12013,2014,2015,2016,2017 2018,2019,2020,2021 |
2016➡7.0.0.9 or later 2017➡7.2.1.4 or later 2018➡7.6.1.2 or later 2019➡8.0.1.0 or later 2020➡8.0.7.0 or later 2021➡8.0.14.0 or later |
0 | 0 | 0 |
| Dirt2 | Dirt2 | Dirt2 | Dirt3 | |
| Dirt3 | Dirt3 | Dirt3 | Dirt4 | |
| Dirt4 | 7.1.0.0 or later | 0 | Zero | 0 |
| Dirt Rally | 0 | Dirt Rally | DiRTRally2.0 | |
| DiRTRally2.0 | 8.0.1.0 or later | 0 | 0 | 0 |
| GRID,GRID2019 | 2019➡8.0.10.0 or later | 0 | 0 | 0 |
| GRID2 | 0 | GRID2 | GRID2 | |
| Kart Racing Pro | Kart Racing Pro | KartRacingPro(release2) | ||
| KartRacingPro(release2) | 7.2.1.3 | KartRacingPro(release2) | KartKraft(release2) | |
| KartKraft | 8.0.3.0 | 0 | Live for Speed | |
| Live for Speed | 7.1.0.0 | 0 | 0 | |
| Euro Truck Simulator2(Steam) | 7.0.2.3 | 0 | 0 | |
| Forza Horizon4 Forza Horizon5 |
8.0.11.0 8.1.1.0 |
0 | 0 | |
| American Truck Simulator | 8.0.12.0 | 0 | 0 |
1 Gran Turismo 6 1.21 or higher is supported.
Operation requires PS3, PC for control, and ACSIM Controller Ver3.0.
